WANG: Mark diagram 23-Jan-2007
(Superceded)
|
Mark and site detail
(Superceded)
|
Geodetic Code:
WANG
|
|
Name:
Wanganui
|
Mark type:
Other
|
|
Land District:
Wellington
|
Plan References:
|
|
Topo50 Reference:
BK31 560 943
|
NZTM:
5594310
1755965
|
|
|
Date established:
10-Apr-2003
|
Date of Inspection:
* 23-Jan-2007
|
|
Mark Description:

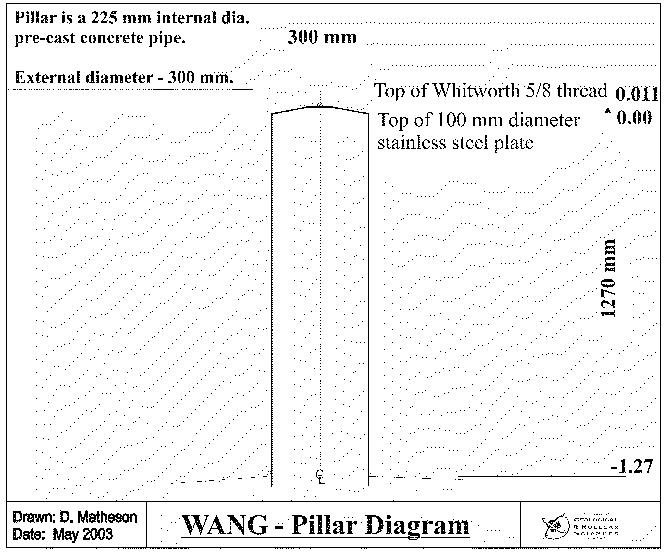

* Stainless steel bolt with 5/8 Whitworth thread in 100 mm square stainless steel plate in centre of concrete pillar 0.30 m dia and 1.27 m above ground level. Has gps antenna permanently attached. Bronze ID plaque.
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
Aluminium ID plate
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Access Restricted - Contact LINZ Geodetic Services
|
|
Access Notes:
n/a
|
|
Access Date:
|
|
Cellphone coverage:
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
10-Apr-2003
|
|
Beacon Type:
* Non Standard Beacon
|
|
Beacon Measurement date:
* 23-Jan-2007
|
|
Beacon Eccentricity:
Central
|
|
|
Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
