RAKW: Mark diagram 20-Apr-2011
|
Mark and site detail
|
Geodetic Code:
RAKW
|
|
Name:
Raukawa
|
Mark type:
Forced Centering
|
|
Land District:
Hawkes Bay
|
Plan References:
|
|
Topo50 Reference:
BK38 103 940
|
NZTM:
5594026
1910276
|
|
|
Date established:
16-Feb-2011
|
Date of Inspection:
* 20-Apr-2011
|
|
Mark Description:
* Continuously operating GNSS station or CORS site. Mark is unable to be physically occupied. Horizontal reference point is the centre of 5/8 thread. The vertical reference is the flat surface at top of monument. There is a 0.002m difference between the GNSS antenna reference point (ARP) and the vertical reference point (antenna height). For more information see https://magma.geonet.org.nz/delta/app
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Restricted - Contact GeoNet: info@geonet.org.nz
|
|
Access Notes:
Permanent GNSS station. Unable to be occupied. RINEX data available for download from GeoNet. ftp://ftp.geonet.org.nz/gps/rinex/.
|
|
Access Date:
|
|
Cellphone coverage:
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
16-Feb-2011
|
|
Beacon Type:
Deep Drilled Braced Monument
|
|
Beacon Measurement date:
* 20-Apr-2011
|
|
Beacon Eccentricity:
Central
|
|
|

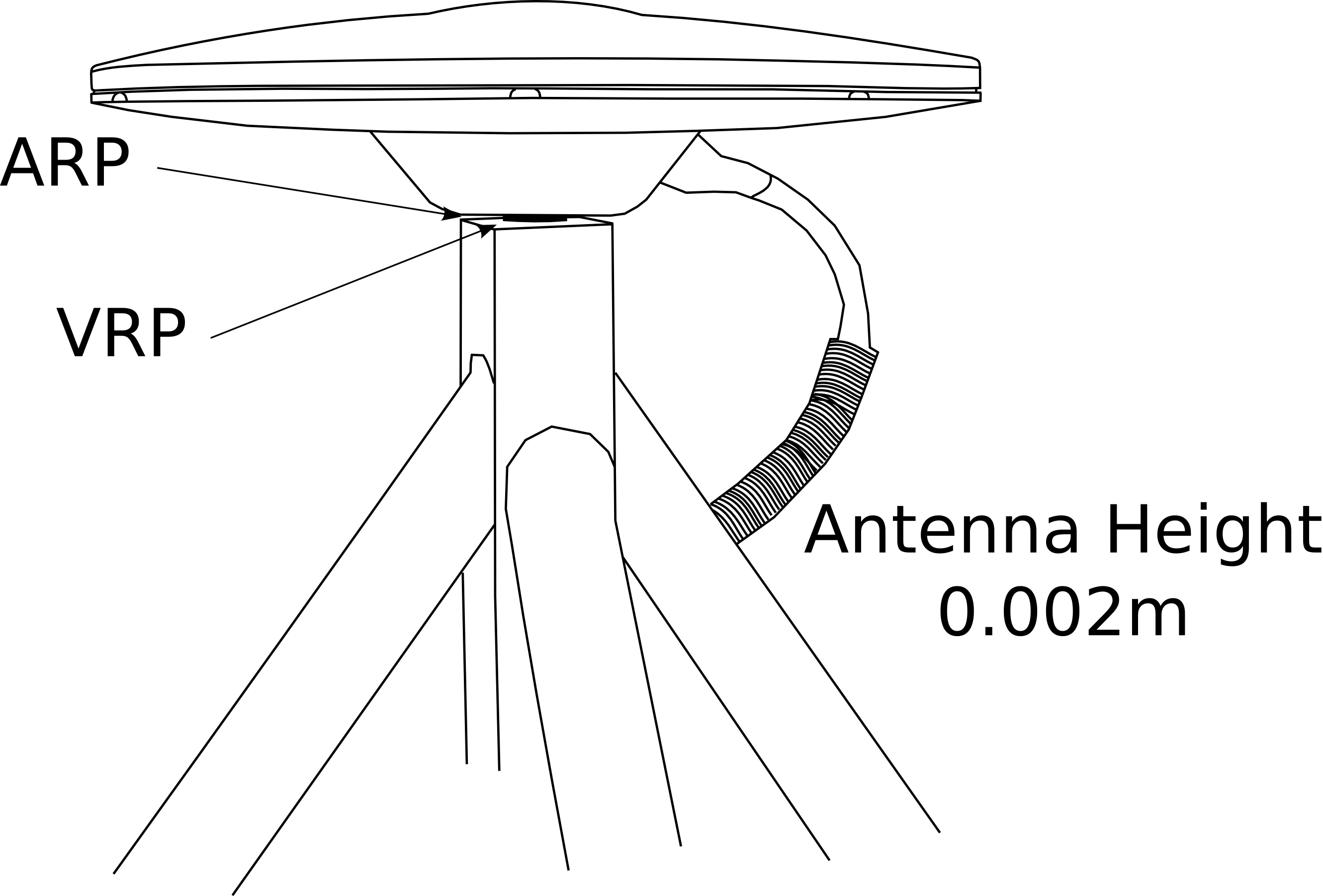

Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
