NPLY: Mark diagram 27-Mar-2007
(Superceded)
|
Mark and site detail
(Superceded)
|
Geodetic Code:
NPLY
|
|
Name:
New Plymouth
|
Mark type:
Other
|
|
Land District:
Taranaki
|
Plan References:
|
|
Topo50 Reference:
BH29 966 624
|
NZTM:
5662369
1696577
|
|
|
Date established:
20-Mar-2003
|
Date of Inspection:
* 27-Mar-2007
|
|
Mark Description:

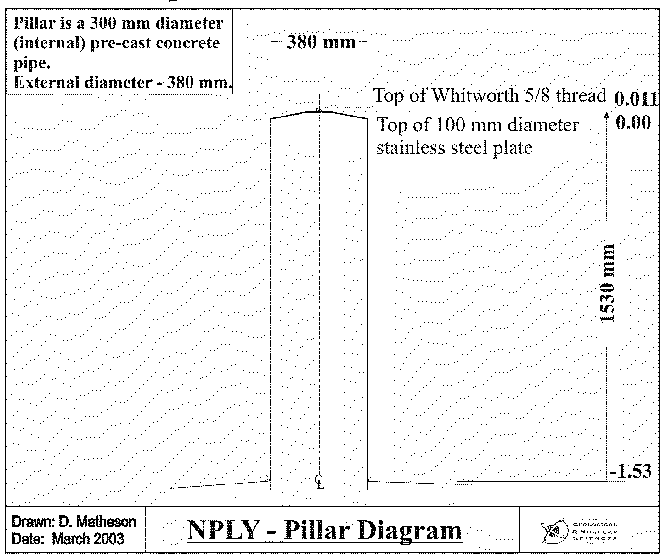

* 5/8 whitworth threaded stainless steel bolt in in centre of 100 mm diameter stainless steel plate set in 0.38 m dia diameter concrete pillar 1.54 m above ground level. Pillar plate is 1561 mm above the top of previous mark (German Hill - B1BF) Bronze ID plaque.
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
Aluminium ID plate
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Access Restricted - Contact Customer Services LINZ
|
|
Access Notes:
Restricted Access
|
|
Access Date:
|
|
Cellphone coverage:
027 Telecom
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
20-Mar-2003
|
|
Beacon Type:
* Non Standard Beacon
|
|
Beacon Measurement date:
* 27-Mar-2007
|
|
Beacon Eccentricity:
Central
|
|
|
Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
