MAST: Mark diagram 15-Dec-2006
(Superceded)
|
Mark and site detail
(Superceded)
|
Geodetic Code:
MAST
|
|
Name:
Tiffin
|
Mark type:
* Other
|
|
Land District:
Wellington
|
Plan References:
SO 15344
|
|
Topo50 Reference:
BP34 172 511
|
NZTM:
5451143
1817173
|
|
|
Date established:
19-Dec-2002
|
Date of Inspection:
* 15-Dec-2006
|
|
Mark Description:
* Stainless steel bolt with 5/8 Whitworth thread in 100 mm square stainless steel plate in centre of concrete pillar 0.35 m dia and 1.45 m above ground level. Has gps antenna permanently attached. Bronze ID plaque.
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
Aluminium ID plate
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Access Restricted - Contact LINZ Geodetic Services
|
|
Access Notes:
n/a
|
|
Access Date:
|
|
Cellphone coverage:
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
19-Dec-2002
|
|
Beacon Type:
* Non Standard Beacon
|
|
Beacon Measurement date:
* 15-Dec-2006
|
|
Beacon Eccentricity:
Central
|
|
|

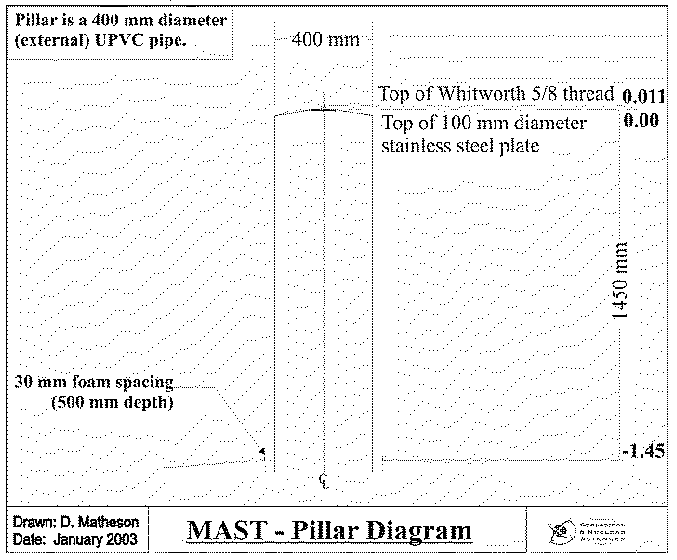

Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
