HAST: Mark diagram 14-Dec-2012
|
Mark and site detail
|
Geodetic Code:
HAST
|
|
Name:
Hastings
|
Mark type:
Forced Centering
|
|
Land District:
Hawkes Bay
|
Plan References:
|
|
Topo50 Reference:
BK38 199 081
|
NZTM:
5608108
1919911
|
|
|
Date established:
19-Sep-2002
|
Date of Inspection:
* 14-Dec-2012
|
|
Mark Description:

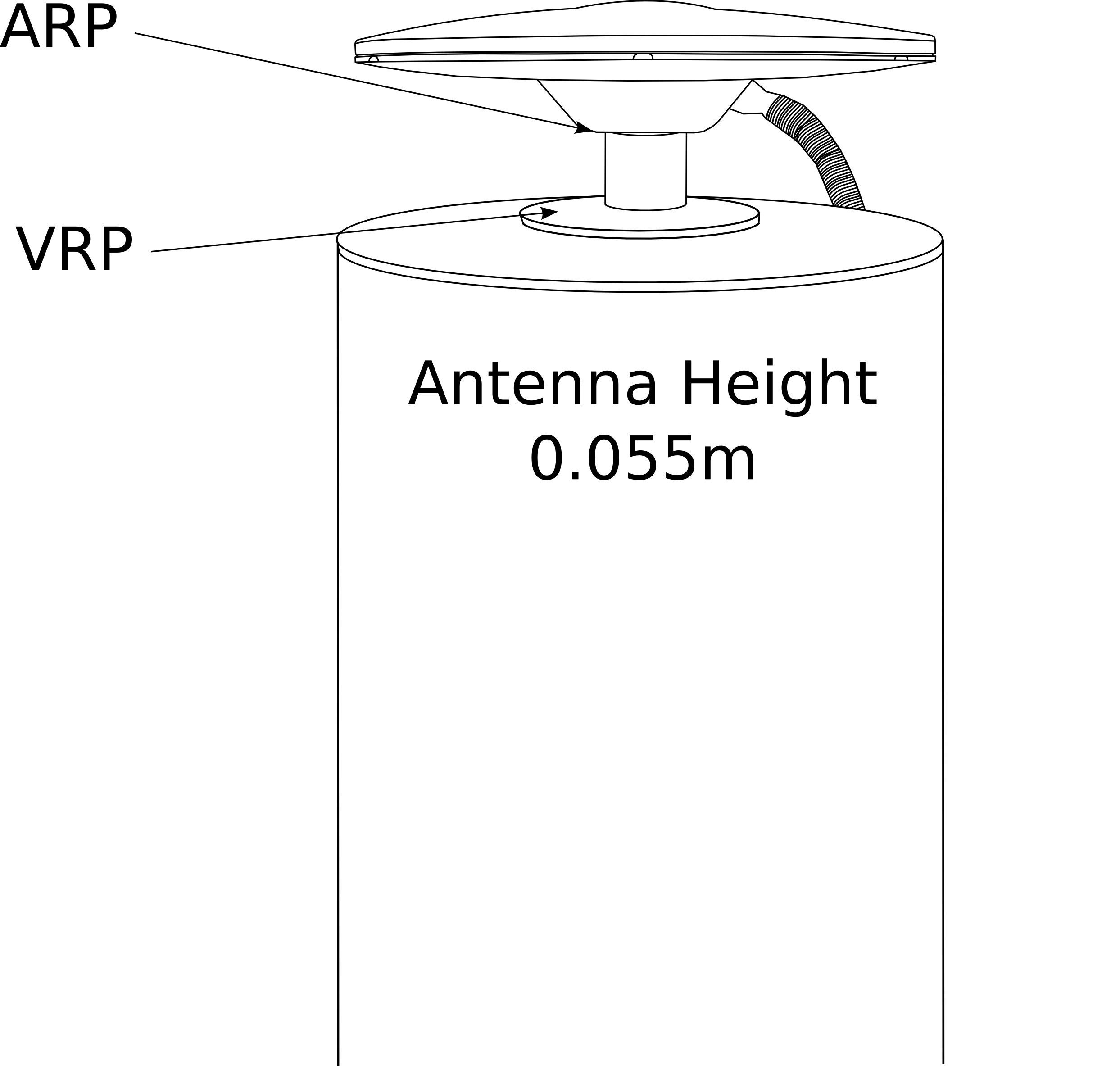

* Continuously operating GNSS station or CORS site. Mark is unable to be physically occupied. Horizontal reference point is the centre of 5/8 thread. The vertical reference is the plate at top of pillar. 0.055m spacer is between GNSS antenna reference point (ARP) and vertical reference plate (antenna height). Pillar plate is 735 mm above the top of previous mark (Roys Hill - A4F2). For more information see http://www.linz.govt.nz/positionz. Bronze ID plaque.
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
Aluminium ID plate
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Restricted - Contact LINZ, Wellington. E-mail: positionz@linz.govt.nz
|
|
Access Notes:
Permanent GNSS station. Unable to be occupied. RINEX data available for download from LINZ: http://www.linz.govt.nz/positionz
|
|
Access Date:
|
|
Cellphone coverage:
027: Good, 021: Good
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
19-Sep-2002
|
|
Beacon Type:
Pillar
|
|
Beacon Measurement date:
* 14-Dec-2012
|
|
Beacon Eccentricity:
Central
|
|
|
Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
