DUND: Mark diagram 22-Feb-2013
|
Mark and site detail
|
Geodetic Code:
DUND
|
|
Name:
Dunedin
|
Mark type:
* Forced Centering
|
|
Land District:
Otago
|
Plan References:
DP 24729
|
|
Topo50 Reference:
CE17 136 161
|
NZTM:
4916070
1413555
|
|
|
Date established:
10-Aug-2005
|
Date of Inspection:
* 22-Feb-2013
|
|
Mark Description:
* Continuously operating GNSS station or CORS site. Mark is unable to be physically occupied. Horizontal reference point is the centre of 5/8 thread. The vertical reference is the flat surface at top of monument. There is a 0.002m difference between the GNSS antenna reference point (ARP) and the vertical reference point (antenna height). Top of SS centre block is 710 mm above the top of previous mark (Trig T1- A24A). For more information see http://www.linz.govt.nz/positionz
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
Aluminium ID plate
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Restricted - Contact LINZ, Wellington. E-mail: positionz@linz.govt.nz
|
|
Access Notes:
Permanent GNSS station. Unable to be occupied. RINEX data available for download from LINZ: http://www.linz.govt.nz/positionz
|
|
Access Date:
|
|
Cellphone coverage:
021: Good, 027: Good
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
10-Aug-2005
|
|
Beacon Type:
Shallow Drilled Braced Monument
|
|
Beacon Measurement date:
* 22-Feb-2013
|
|
Beacon Eccentricity:
Central
|
|
|

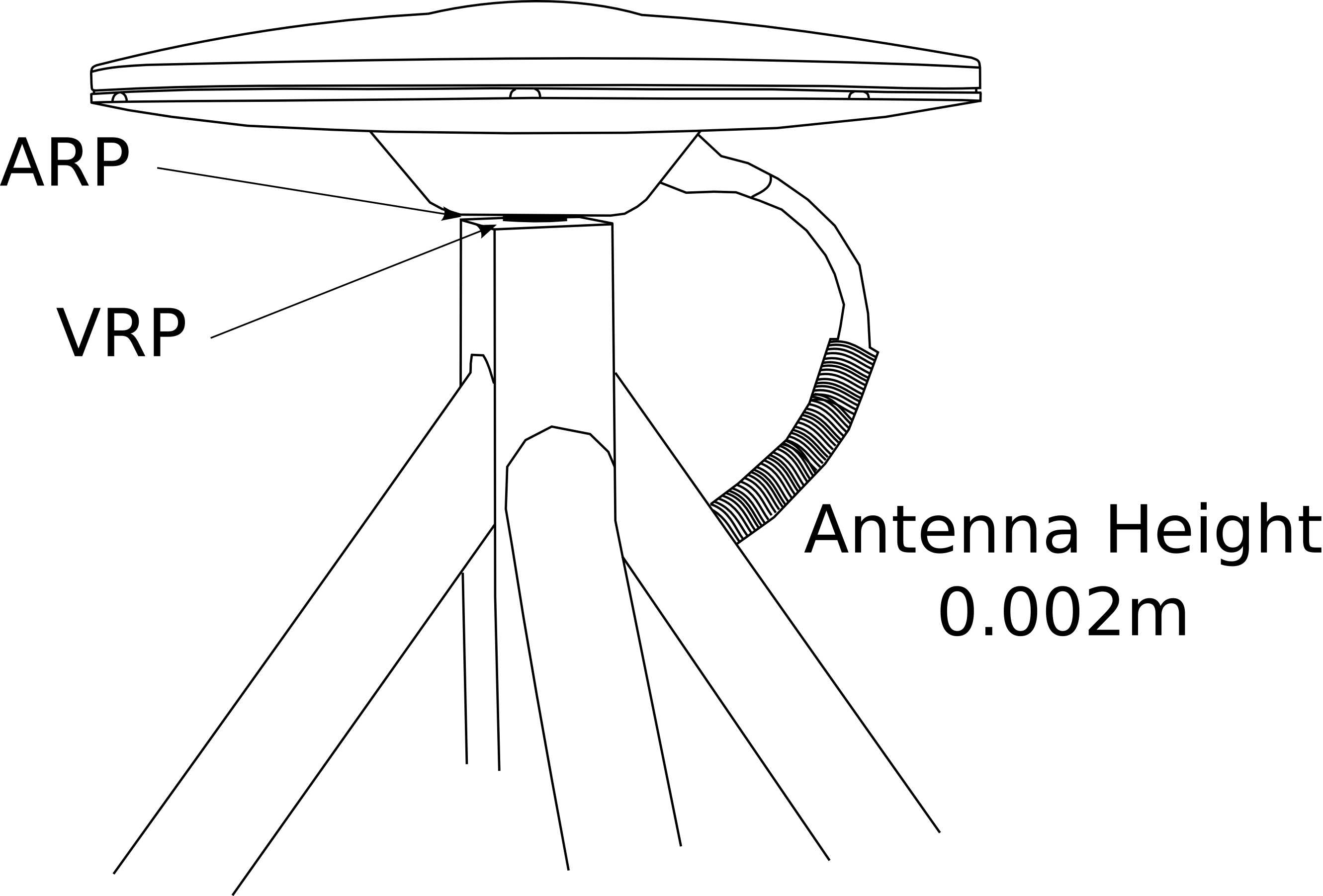

Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
