CHTI: Mark diagram 03-Dec-2010
|
Mark and site detail
|
Geodetic Code:
CHTI
|
|
Name:
Chatham Island North
|
Mark type:
Forced Centering
|
|
Land District:
Wellington
|
Plan References:
|
|
Topo50 Reference:
|
NZTM:
5104823
2436317
|
|
|
Date established:
10-Dec-2007
|
Date of Inspection:
* 03-Dec-2010
|
|
Mark Description:

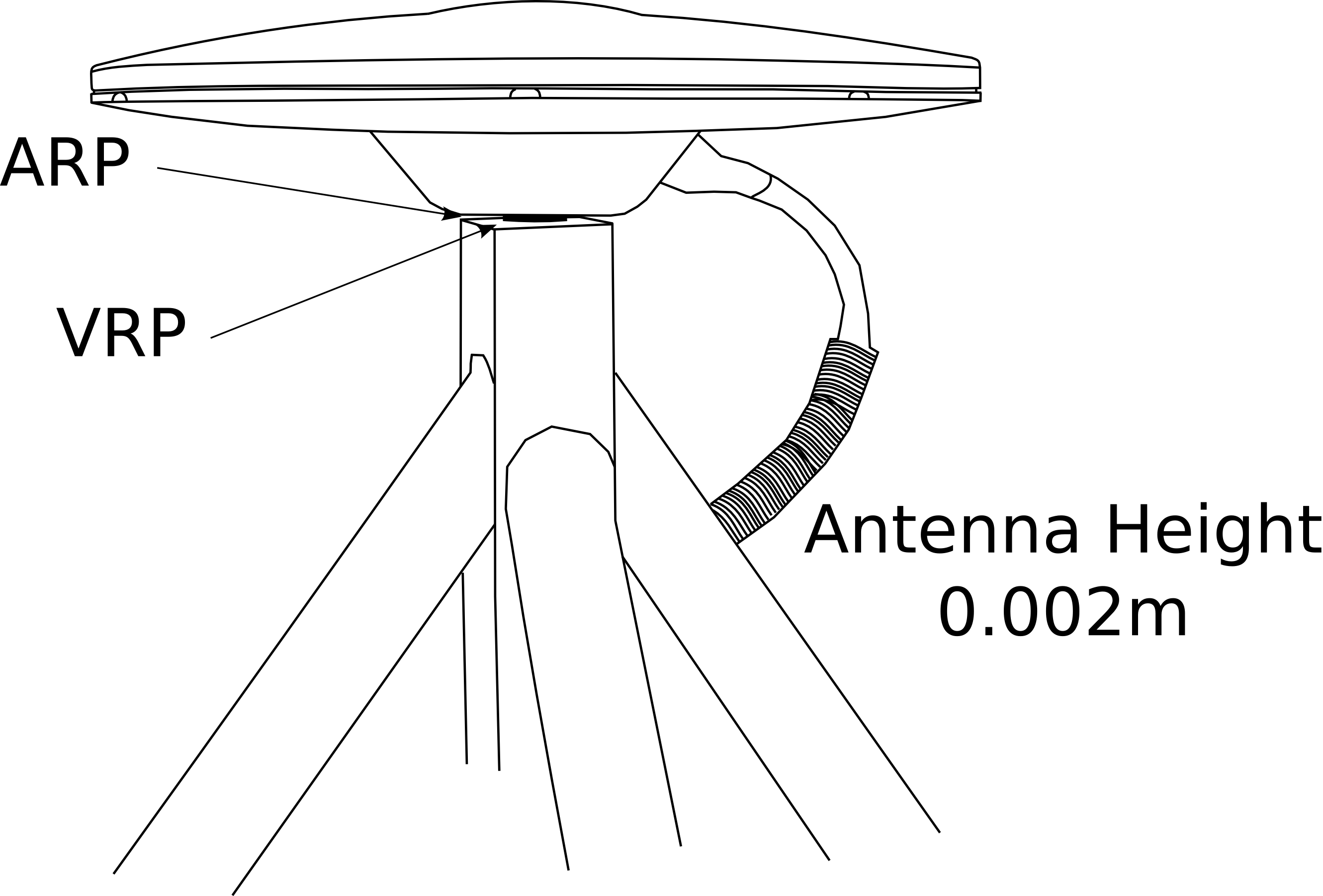

* Continuously operating GNSS station or CORS site. Mark is unable to be physically occupied. Horizontal reference point is the centre of 5/8 thread. The vertical reference is the flat surface at top of monument. There is a 0.002m difference between the GNSS antenna reference point (ARP) and the vertical reference point (antenna height). For more information see http://www.linz.govt.nz/positionz
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Restricted - Contact LINZ, Wellington. E-mail: positionz@linz.govt.nz
|
|
Access Notes:
Permanent GNSS station. Unable to be occupied. RINEX data available for download from LINZ: http://www.linz.govt.nz/positionz
|
|
Access Date:
|
|
Cellphone coverage:
Not tested
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
10-Dec-2007
|
|
Beacon Type:
Shallow Drilled Braced Monument
|
|
Beacon Measurement date:
* 03-Dec-2010
|
|
Beacon Eccentricity:
Central
|
|
|
Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
