CHAT: Mark diagram 11-Apr-2019
(Superceded)
|
Mark and site detail
(Superceded)
|
Geodetic Code:
CHAT
|
|
Name:
Chatham Island
|
Mark type:
Forced Centering
|
|
Land District:
Wellington
|
Plan References:
SO 443818
|
|
Topo50 Reference:
|
NZTM:
5079816
2437325
|
|
|
Date established:
04-Oct-1995
|
Date of Inspection:
11-Apr-2019
|
|
Mark Description:
* Previously a continuously operating GNSS station or CORS site (decomissioned 23.05.2012). Horizontal reference point is the centre of 5/8" thread. The vertical reference is the plate at top of pillar. Antenna height was 0.0062m (distance between GNSS antenna reference point (ARP) and vertical reference plate (antenna height). For more information see http://www.linz.govt.nz/positionz
|
|
Mark Protection Structure Type:
* No protection.
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Contact landowner prior to entry.
|
|
Access Notes:
Located in grassed paddock behind wooden post and wire fence of decommissioned meteorological station.
|
|
Access Date:
|
|
Cellphone coverage:
Spark: No Coverage. Vodafone: No Coverage. 2Degrees: No Coverage
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
11-Apr-2019
|
|
Beacon Type:
* Pillar
|
|
Beacon Measurement date:
11-Apr-2019
|
|
Beacon Eccentricity:
|
|
|

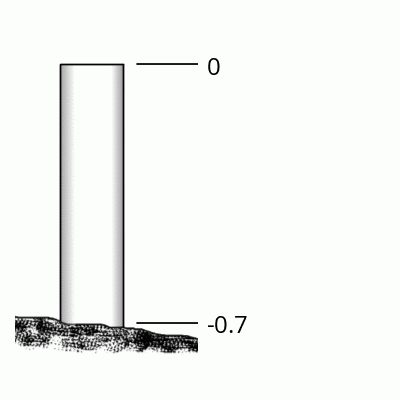

Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
