CHAT: Mark diagram 04-Dec-2010
(Superceded)
|
Mark and site detail
(Superceded)
|
Geodetic Code:
CHAT
|
|
Name:
Chatham Island
|
Mark type:
Forced Centering
|
|
Land District:
Wellington
|
Plan References:
|
|
Topo50 Reference:
|
NZTM:
5079816
2437325
|
|
|
Date established:
04-Oct-1995
|
Date of Inspection:
* 04-Dec-2010
|
|
Mark Description:
* Previously a continuously operating GNSS station or CORS site (decomissioned 23.05.2012). Horizontal reference point is the centre of 5/8 thread. The vertical reference is the plate at top of pillar. Antenna height was 0.0062m (distance between GNSS antenna reference point (ARP) and vertical reference plate (antenna height). For more information see http://www.linz.govt.nz/positionz
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Restricted - Contact LINZ, Wellington. E-mail: positionz@linz.govt.nz
|
|
Access Notes:
RINEX data available for download from LINZ: http://www.linz.govt.nz/positionz
|
|
Access Date:
|
|
Cellphone coverage:
Not tested
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
04-Oct-1995
|
|
Beacon Type:
* Pillar
|
|
Beacon Measurement date:
* 04-Dec-2010
|
|
Beacon Eccentricity:
Central
|
|
|

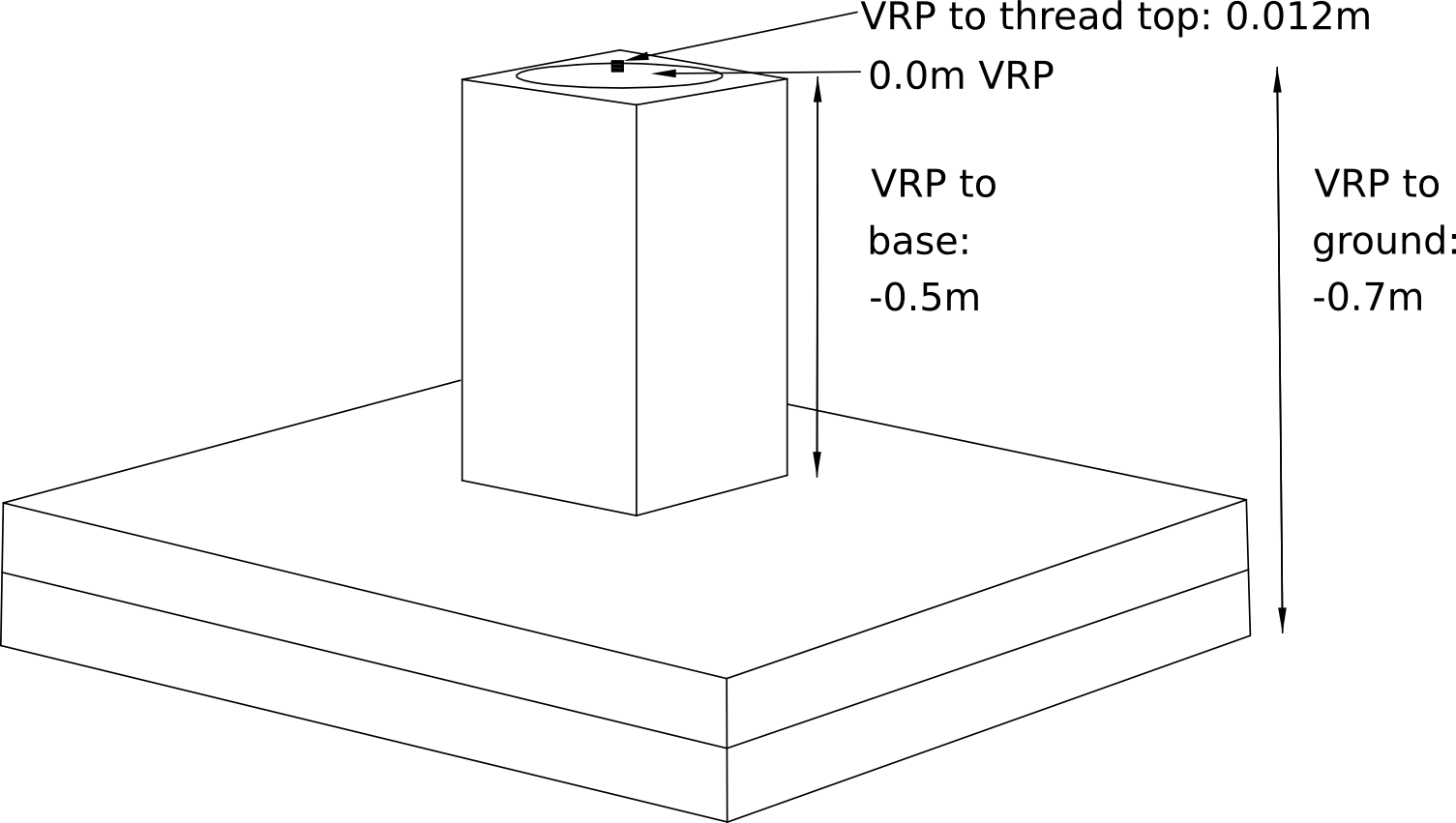

Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
