BLUF: Mark diagram 02-Mar-2011
|
Mark and site detail
|
Geodetic Code:
BLUF
|
|
Name:
Bluff
|
Mark type:
Forced Centering
|
|
Land District:
Southland
|
Plan References:
|
|
Topo50 Reference:
CG10 393 302
|
NZTM:
4830169
1239339
|
|
|
Date established:
05-Mar-2004
|
Date of Inspection:
* 02-Mar-2011
|
|
Mark Description:

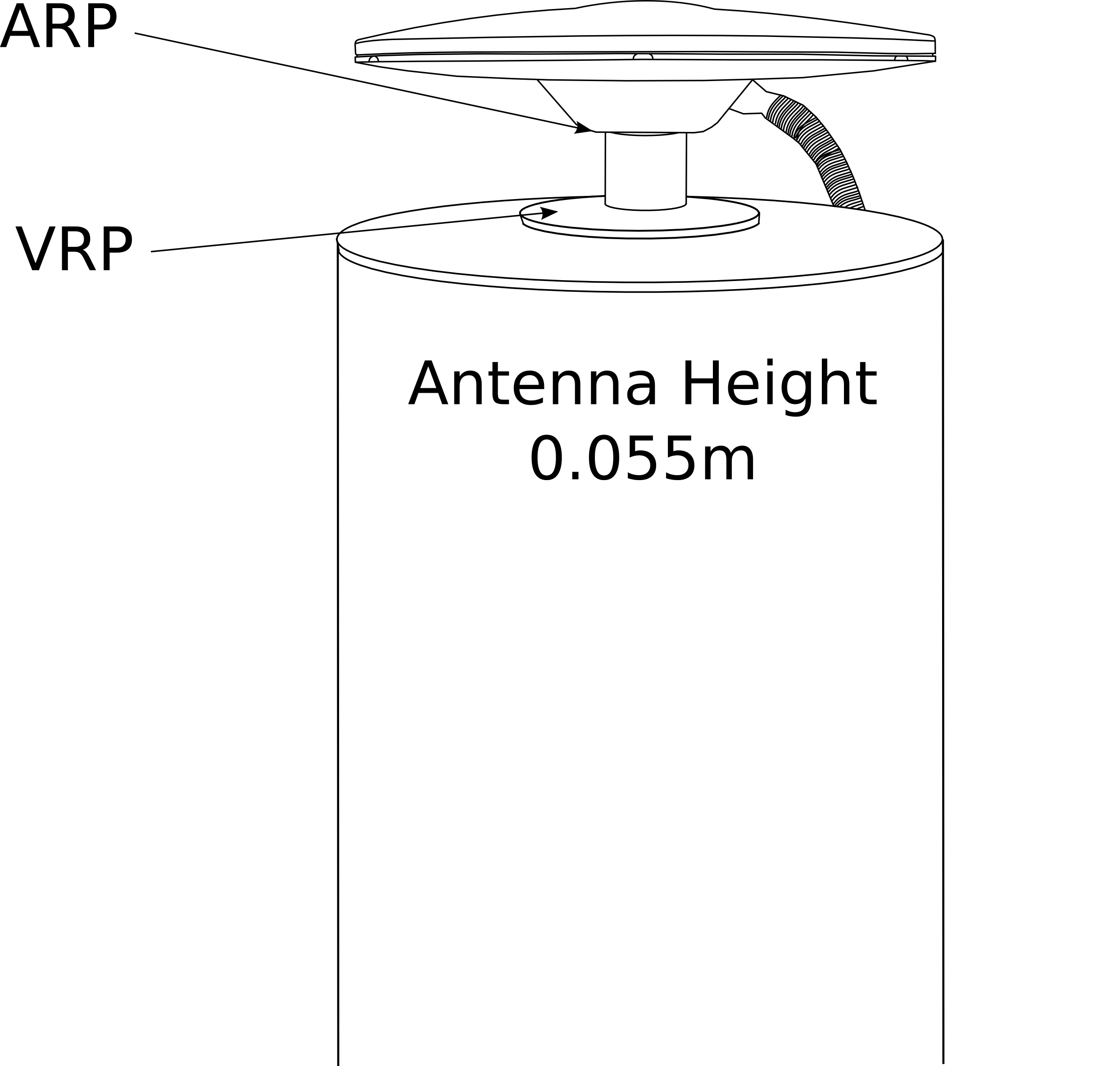

* Continuously operating GNSS station or CORS site. Mark is unable to be physically occupied. Horizontal reference point is the centre of 5/8 thread. The vertical reference is the plate at top of short pillar. 0.055m spacer is between GNSS antenna reference point (ARP) and vertical reference plate (antenna height). For more information see http://www.linz.govt.nz/positionz Bronze ID plaque.
|
|
Mark Protection Structure Type:
* Post & rail enclosure.
Aluminium ID plate
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
Restricted - Contact LINZ, Wellington. E-mail: positionz@linz.govt.nz
|
|
Access Notes:
Permanent GNSS station. Unable to be occupied. RINEX data available for download from LINZ: http://www.linz.govt.nz/positionz
|
|
Access Date:
|
|
Cellphone coverage:
Good
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
05-Mar-2004
|
|
Beacon Type:
Pillar
|
|
Beacon Measurement date:
* 02-Mar-2011
|
|
Beacon Eccentricity:
Central
|
|
|
Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
