1298: Mark diagram 04-Mar-1996
|
Mark and site detail
|
Geodetic Code:
1298
|
|
Name:
20 WHAKATANE
|
Mark type:
Tube
|
|
Land District:
South Auckland
|
Plan References:
SO 49133
|
|
Topo50 Reference:
BE40 523 916
|
NZTM:
5791611
1952256
|
|
|
Date established:
31-Dec-1869
|
Date of Inspection:
04-Mar-1996
|
|
Mark Description:
* 2 in diameter cast iron tube with 'xx' cast on side and set in conc. Position disturbed as a result of 1987 Edgecumbe earthquake. Readjusted position recorded as Whakatane No 2. 20 Whakatane not to be used for survey purposes.
|
|
Mark Protection Structure Type:
* 3m or 4m Beacon.
|
|
GNSS Suitability:
|
|
Public ownership:
Unknown
|
|
|
|
|
Access Restrictions:
No Reported Access Restrictions
|
|
Access Notes:
Drive to end of Whakatane Lookout Rd. trig is about 10m north of Lookout.
|
|
Access Date:
|
|
Cellphone coverage:
Not tested
|
|
|
Access Diagram:
|
|
(Access diagram not available)
|
|
|
Date Beacon Erected:
01-Jan-1980
|
|
Beacon Type:
Four metre beacon
|
|
Beacon Measurement date:
04-Mar-1996
|
|
Beacon Eccentricity:
Central
|
|
|

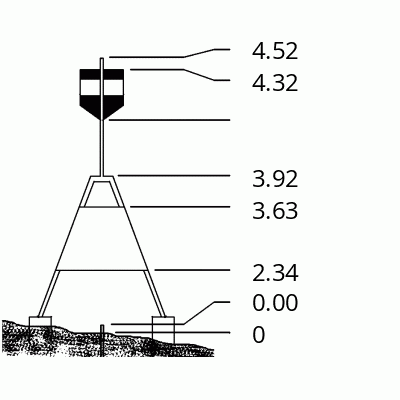

Beacon Diagram:
|
|
|
*
The data in Landonline may be more recent
